All roads lead to your bar.

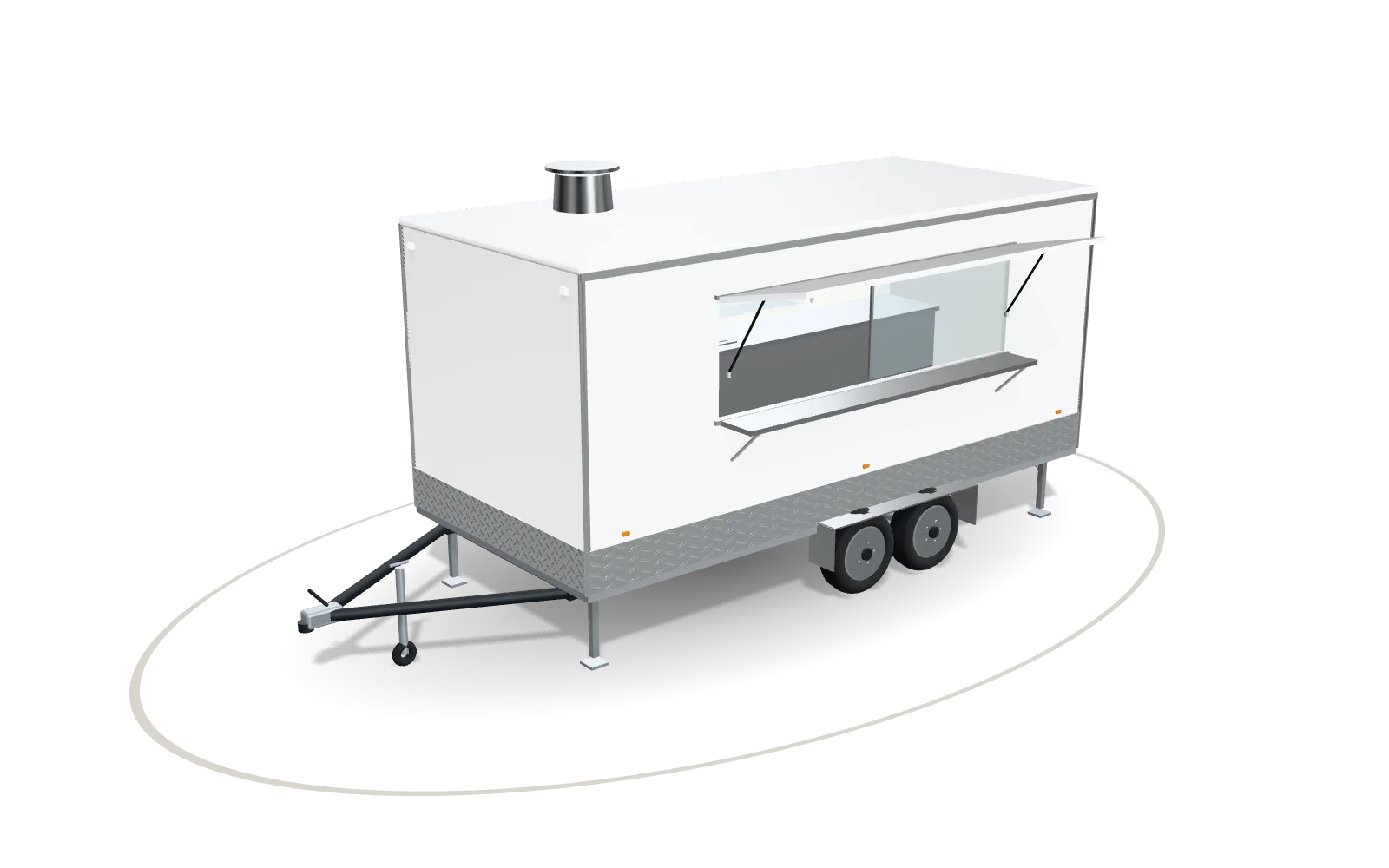

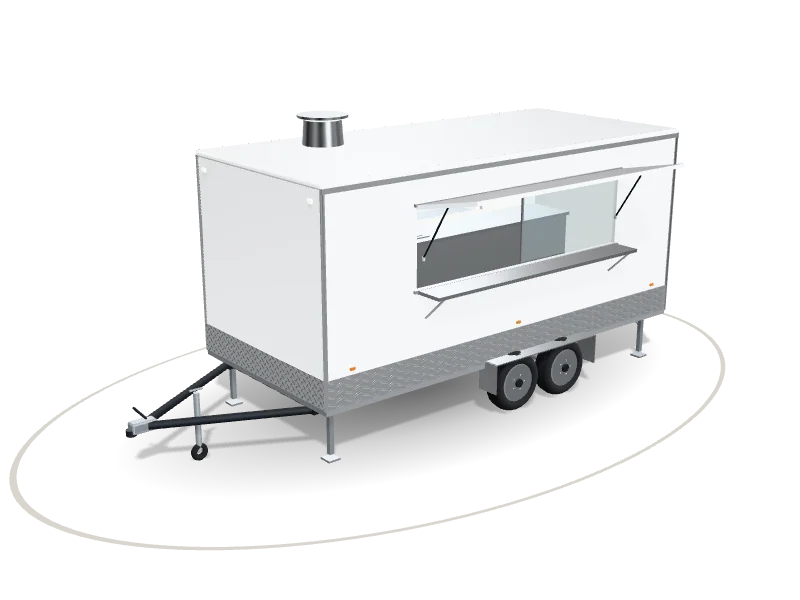

Bar 500
A full bar on one side and a hot line on the other.
Read the full descriptionStandard

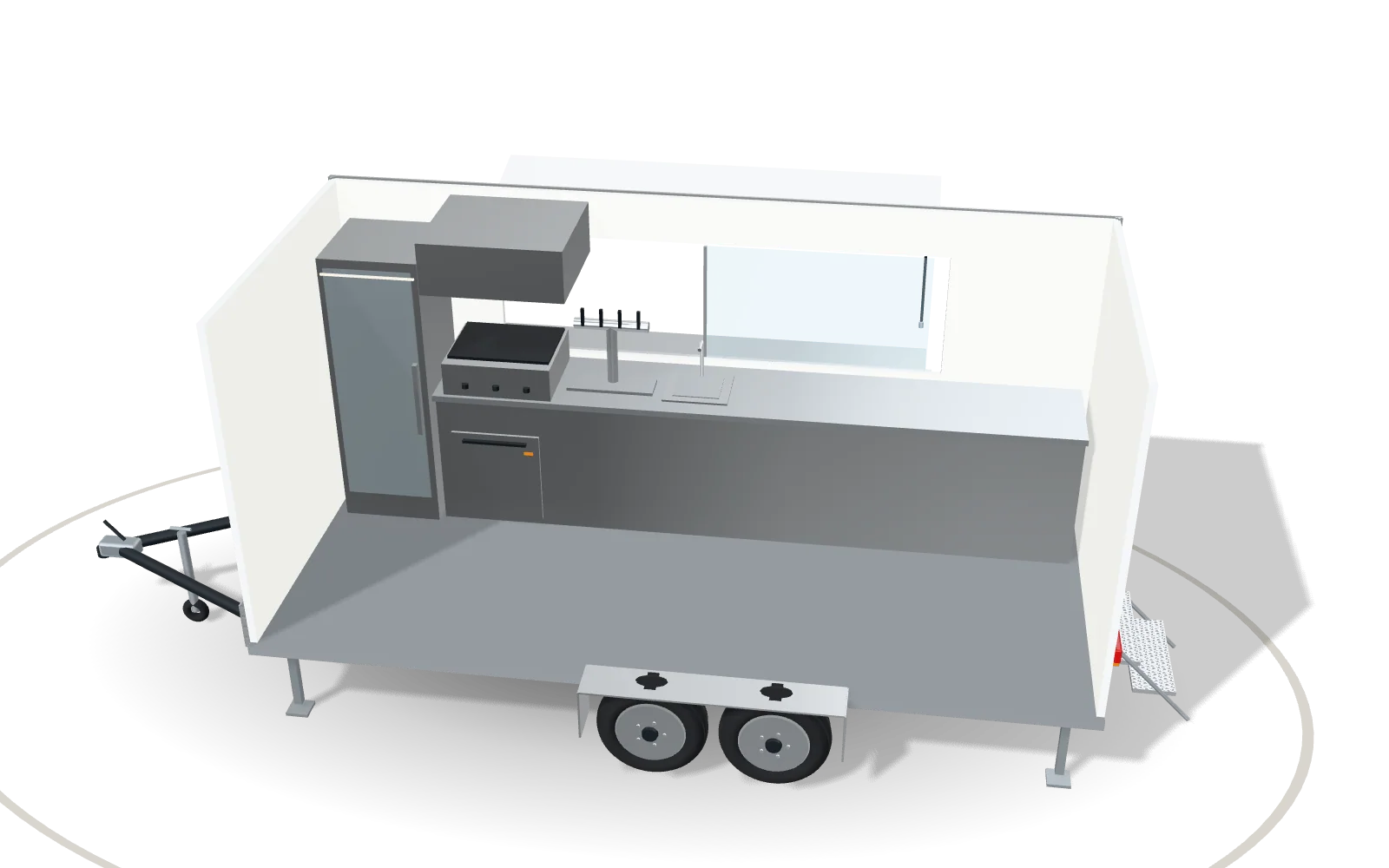

This unit comes with
- Draught beverage system
- Upright refrigerator
- Undercounter freezer
- Flat griddle
- Extraction hood and fan
- Second serving side
And with the premium class
- High-capacity cold, preparation and hot line
- Premium interior and exterior finish
- Two serving sides
- Full extraction and controlled amperage
- Inspection pack prepared for handover
Personalise

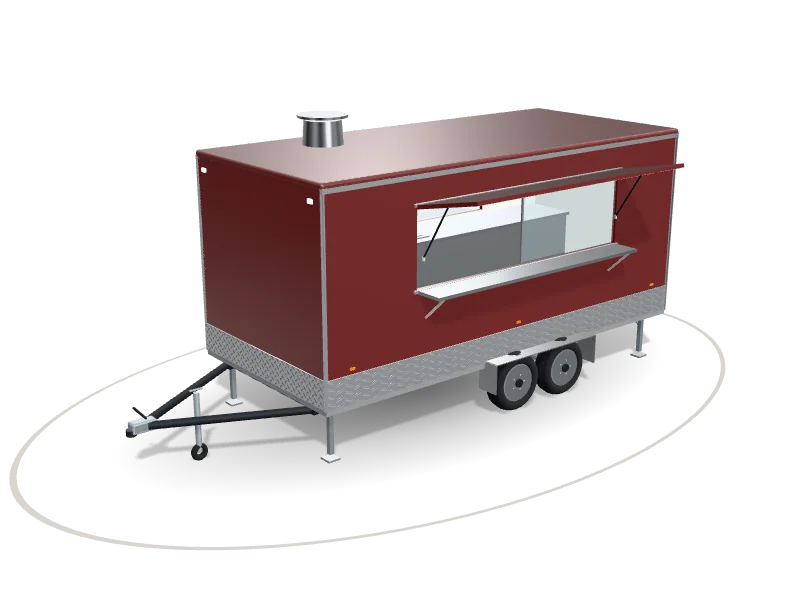

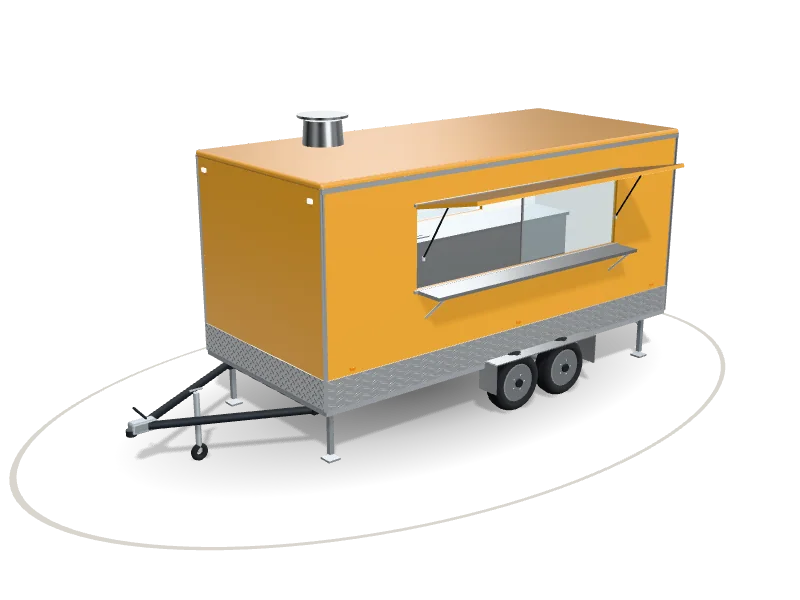

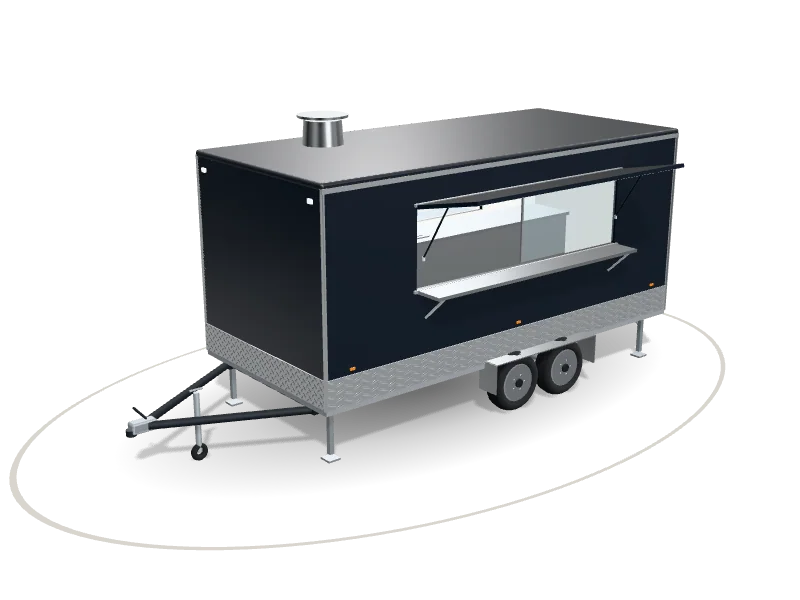

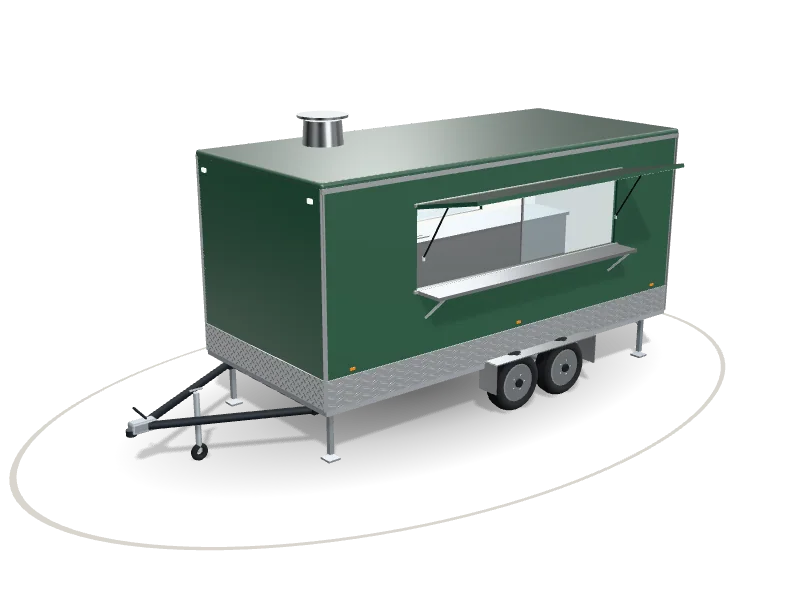

Colour and finish
Painted in your chosen colour, or wrapped to your artwork. The colour above changes the unit as you pick it.

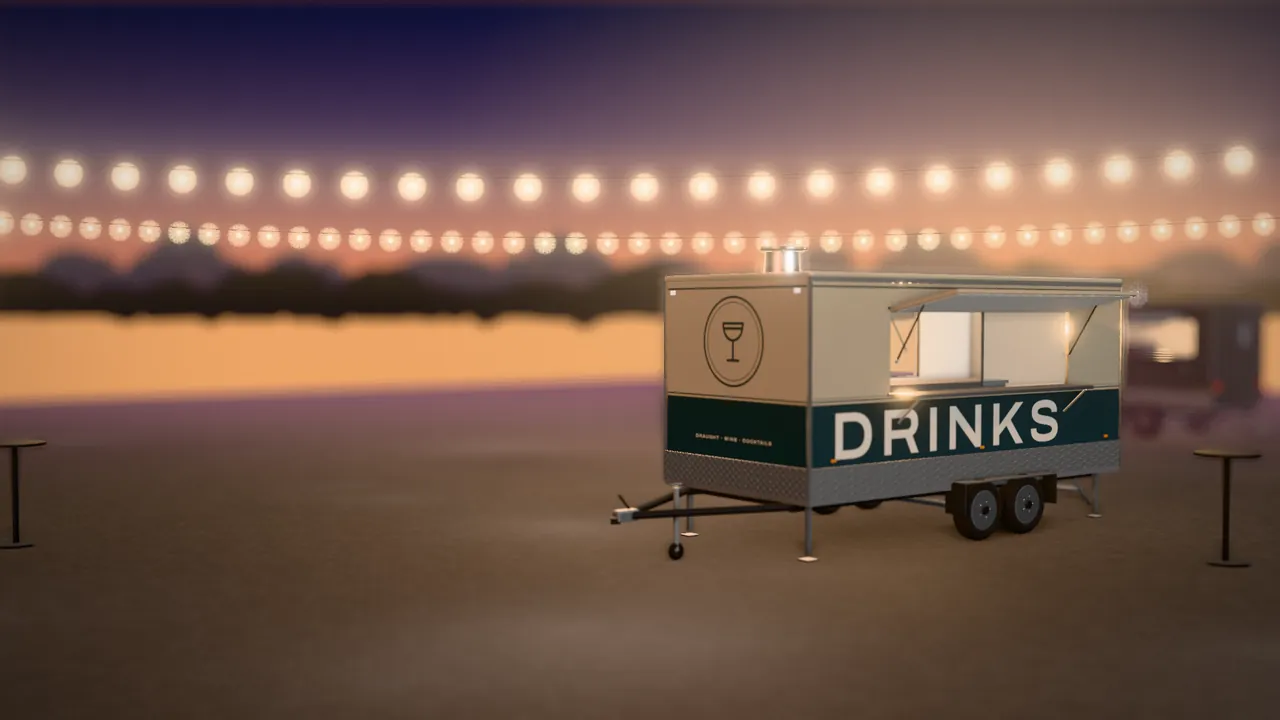

Branding
Send artwork, or we will work from your existing brand. Wrap is applied after the build, so the unit is photographed finished.
Options
Build your specification
Add what your menu needs. Dependencies resolve themselves, the supply follows the load, and anything that needs a person to sign it off is flagged as you go.
Description
About this unit
A full bar on one side and a hot line on the other, for venues that need both from one unit.
Every unit is built to the specification agreed with you and for the country it will be registered in. The equipment list, the electrical design and the approval route are settled before anything is built, and the applicable model, market and handover documentation is confirmed before an order is accepted.
Confirmed with you before quotation
- Towing mass against the customer's vehicle
- Site power availability
- Fire and hygiene plan
- Road approval and delivery route
At a glance
| Model | Bar 500 · Premium class |
|---|---|
| Body length | 500 cm design |
| Length with drawbar | 642 cm design |
| Width | 230 cm design |
| Height | 280 cm design |
| Unladen weight | 1750 kg design |
| Gross vehicle weight | 3500 kg design |
| Axles | Twin, braked |
| Standard supply | 230 V single phase, 400 V where the load requires it |
| Operators | 2 to 3 |
| Service capacity | 320+/day |
Figures marked design are what the unit is drawn to. How dimensions and masses are confirmed on the finished unit is set out in the written quotation and order, because a declared mass that has never been weighed is not a mass. The build standard sets out the measurement.
Whether you can legally tow this weight depends on when you passed your test. What you are allowed to tow sets out the rule and measures every unit in the range against the limits.
Weights and axle configuration are the build target and are confirmed on your quotation, for your configuration and your market.
Specification
Every figure, in full
This is the specification we order to and hold the manufacturer against. Anything your configuration changes is restated on your quotation.
Chassis and running gear
| Chassis | Hot-dip galvanised steel, fully welded |
|---|---|
| Suspension | Rubber torsion, independent |
| Axles | Twin, braked |
| Braking | Overrun brakes with automatic reverse |
| Coupling | 50 mm ball coupling with stabiliser |
| Jockey wheel | Swivel, fitted |
| Corner steadies | 4, drop-down |
| Wheels | Road wheels with spare wheel and jack |
| Lighting | Road lighting to destination-market requirements, 13-pin |
Body and structure
| Construction | 50 mm insulated sandwich panel, bonded |
|---|---|
| Exterior | Powder-coated aluminium skin in your chosen colour |
| Interior lining | Food-grade GRP, wipe-clean, coved to the floor |
| Floor | Anti-slip commercial vinyl, coved and sealed, floor drain |
| Roof | Sealed one-piece, insulated, walkable for service access |
| Personnel door | Lockable, with retainer and step |
| Serving hatch | 240 x 110 cm, two sides, gas struts, lockable |
| Counter | 90 cm high, 70 cm deep |
Electrical
| Supply inlet | CEE 400 V 63 A |
|---|---|
| Distribution | Consumer unit, 4 RCDs and 16 MCBs |
| Sockets | 16 x 230 V, IP-rated |
| Interior lighting | LED strip, switched in zones |
| Serving lighting | LED over the counter and the hatch |
| Earthing and bonding | Full equipotential bonding, test certificate at handover |
| Connected load | Set by your configuration and confirmed on the quotation |
Water and waste
| Fresh water | 300 L tank, filler and level gauge |
|---|---|
| Waste water | 350 L tank, drain valve |
| Pump | 12 V pressure pump with accumulator |
| Hot water | Fitted where the configuration includes it |
| Hand-wash basin | Separate basin with elbow or sensor tap |
| Sink | Stainless, with drainer |
Ventilation, fire and safety
| Extraction | Sized to the installed hot line, with grease filters |
|---|---|
| Make-up air | Passive inlet sized to the extraction |
| Fire extinguisher | Wet chemical and CO2, mounted and signed |
| Fire blanket | Mounted at the exit |
| Suppression | Fitted where the configuration includes it |
| Gas | Where fitted: regulated bottle locker, bulkhead-mounted, with a country gas plan |
Interior fit
| Worktops | 304 stainless steel, folded edges |
|---|---|
| Storage | Closed under-counter storage and open shelving |
| Splashbacks | Stainless behind the hot line |
| Wall protection | Stainless behind the wash area |
Handover
What the handover can include
- Keys, and a second set
- Build drawing for your exact configuration
- Electrical schematic and the installation test certificate
- Water and waste schematic
- Equipment manuals and warranty cards for every installed appliance
- Weight ticket showing the as-built unladen weight
- The approval file for your market, as it applies to this unit
- Cleaning and maintenance schedule
The applicable model, market and handover documentation is confirmed before an order is accepted. If something on this list will not exist for your market, you are told before you commit rather than at the kerb.
Your side
What you need to provide
A tow vehicle rated for the gross weight
The gross vehicle weight is on the specification. Check it against your vehicle's towing limit and your licence category before you order; we will confirm both on the quotation.
A site power supply, or onboard generation
The connected load is set by your configuration. If the sites you trade on cannot supply it, add a generator or a battery system and we will size it.
Fresh water and a waste route
Tank capacity gives you a trading day. Longer than that needs a fill and a discharge point.
Your food business registration
A road-legal trailer is not an approved food business. That registration is yours to hold, with your local authority.
Artwork, if you want the unit wrapped
Vector artwork, or your existing brand files. We will work from what you have.
Lead time
From order to keys
Lead time is quoted against a frozen specification, step by step, and you are told when a step moves.
Specification frozen
Configuration, equipment list, electrical design and the approval route agreed in writing.
Build
Chassis, body, fit-out and equipment installation to the frozen drawing.
Inspection
Inspection and quality-control arrangements are confirmed in the written quotation and order.
Freight and clearance
Freight, insurance, customs entry and duty, quoted as part of the purchase.
Approval and handover
Presented on the route for your country, then delivered and handed over. The applicable model, market and handover documentation is confirmed before an order is accepted.
Approval
Registering this unit where you trade
Road approval is per model and per country. We establish the route for your market before quoting, and the unit is built to satisfy it rather than adapted afterwards.
A CE mark is not road approval. If a seller answers this question with a CE certificate, they have not answered it.
After the sale
Warranty, support and finance
Warranty
Any applicable warranty and aftercare terms are confirmed in the written quotation before order. What the terms cover.
Support
One point of contact from first configuration through the years after handover. How support works.
Finance
Arranged with a provider in your market. The quotation is itemised so it can go straight to them. What a provider needs.
Compare
Bar 500 against the rest of the range
| Bar 500 | Coffee 220 | Bar 220 | Dessert 220 | Kitchen 300 | Street food 300 | |
|---|---|---|---|---|---|---|
| Body length | 500 cm | 220 cm | 220 cm | 220 cm | 300 cm | 300 cm |
| Width | 230 cm | 203 cm | 203 cm | 203 cm | 210 cm | 210 cm |
| Unladen weight | 1750 kg | 550 kg | 550 kg | 550 kg | 850 kg | 850 kg |
| Gross vehicle weight | 3500 kg | 1300 kg | 1300 kg | 1300 kg | 2000 kg | 2000 kg |
| Axles | Twin, braked | Single, braked | Single, braked | Single, braked | Single, braked | Single, braked |
| Operators | 2 to 3 | 1 | 1 | 1 | 1 to 2 | 1 to 2 |
| Service capacity | 320+/day | up to 60/day | up to 60/day | up to 60/day | 60 to 180/day | 60 to 180/day |
Dimensions and masses in this table are design figures for every unit in it, on the same basis as the specification above.
Questions
What buyers ask before they order
Can I tow this with my vehicle?
That depends on the gross vehicle weight of your configuration and your licence category, and both are confirmed on the quotation before you commit. The gross weight in the specification is the build target, and adding equipment moves it, so the configurator tracks what you add.
Is it road legal where I am?
Road approval is per model and per country, and we work the route for your market before quoting. What that involves differs a lot: an individual approval in the Netherlands, a section 21 assessment in Germany, an IVA in the United Kingdom. A CE mark is not road approval.
Can I use it as a food business straight away?
No. A road-legal trailer is not an approved food business. You register the business with your local authority, and the unit is specified so it passes that inspection.
How much does it cost?
Every unit is built to order, so the price follows the configuration and the market. Build the specification and ask for a quotation; you get one price, delivered and handed over, with taxes and registration fees itemised separately.
What if my menu changes later?
The hot line, refrigeration and serving layout can be specified with headroom. Tell us what you might add and we will size the extraction and the electrical supply for it now, which is far cheaper than doing it afterwards.
Can I see it before it ships?
Inspection and quality-control arrangements are confirmed in the written quotation and order. Where they include an inspection report, photographs or a video walkaround, you receive them.
What happens if something breaks?
Any applicable warranty and aftercare terms are confirmed in the written quotation before order. Read them before you order rather than after a failure.
Same concept
Other sizes and variants
Bar 220
Draught and refrigeration over cooking, with a long counter and a short setup.
Catering 500
The flagship: multi-station service, high-capacity cold chain, two serving sides.
Pizza 500
Oven and grill line side by side, for a two-concept flagship.
Configure your Bar 500
Add what you need, choose the market, and a person quotes it. No obligation, no deposit.
